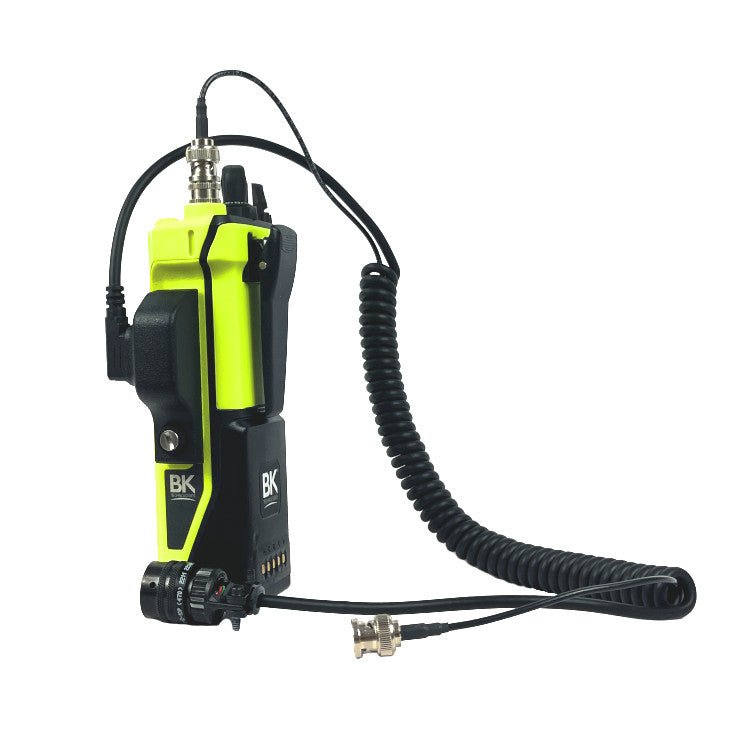

10-Pin AUX-FM Aviation Adapter for BKR5000 and BKR9000 Series Radios
$950.00
- Designed for use with USFS Contract Helicopters.
- Utilizes the existing push to talk (PTT) button on the communications system of the helicopter to access the BKR radio.
- Enables the use of existing speaker or headset and mic with the helicopters radio system.
Details
What is the 10-Pin Auxiliary Adapter?

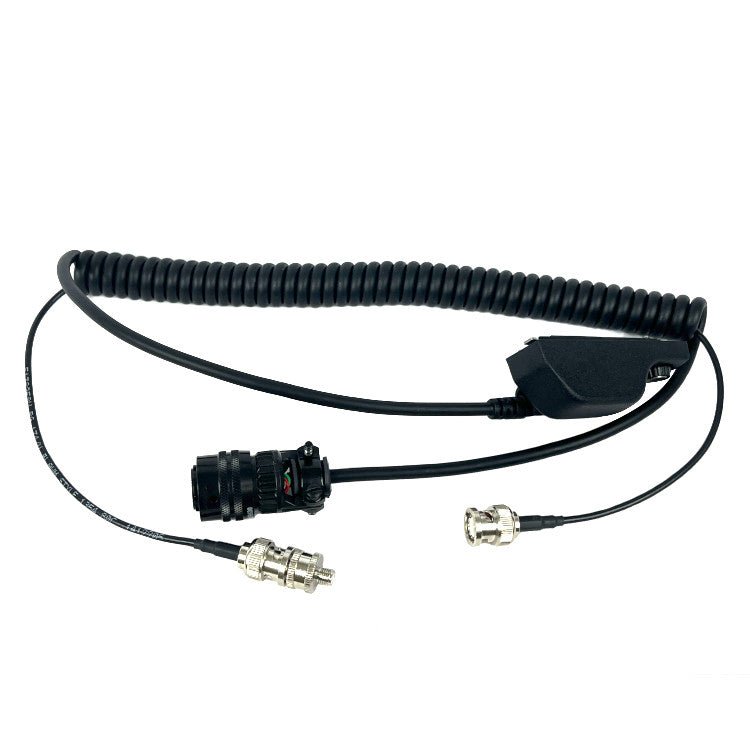

The AVBKRAU9R is a 10-pin MS3112E12-10P auxiliary adapter which connects a Bendix King KNG portable handheld radio to a MS3112E12-10S port on the flight panel of a helicopter. The adapter allows the BK Radio BKR5000 or BKR9000 Handheld to integrate with the on board radio system on the helicopter.
Works with the following Bendix King Radios:
- BKR5000 and BKR90000 Series Radios
Why Choose the AVKNGAU9R?
The 10-pin AUX-FM adapter allows for simple interfacing of a BK BKR series portable radio with aircraft AUX-FM audio systems. No need to make a custom set up for a new radio when you can get a pre assembled and tested auxiliary adapter ready to plug and play.

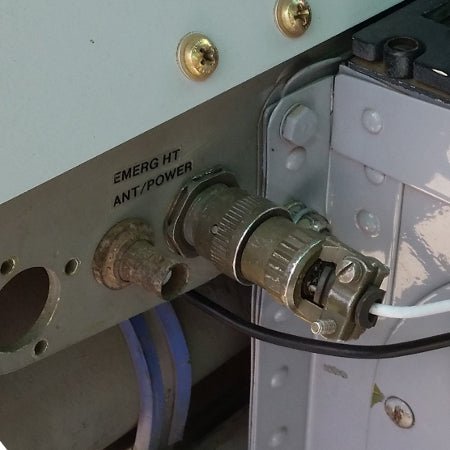

Note: The 10-pin AUX-FM (MS3112E12-10S) port is commonly found in US Forest Service aircraft. Not all aircraft use a 10-pin MS3112E12-10P auxiliary plug. Built using the USFS OAS A-17 configuration standard.
*Flight helmet headset adapters are also available, see AVBKRFH9R
